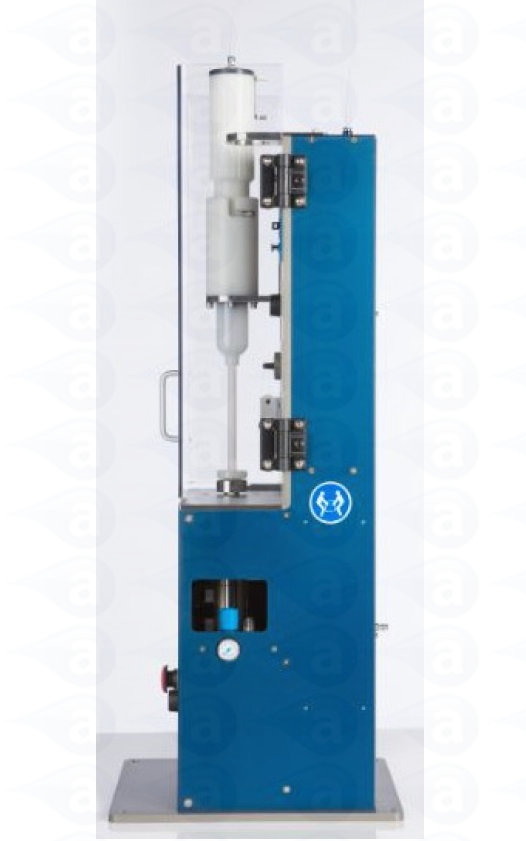

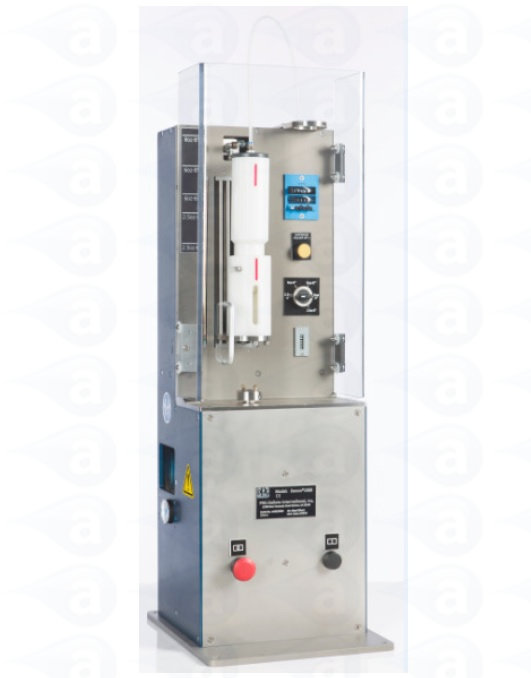

The Semco model 1088 fully pneumatic machine mixer provides complete automatic mixing of filled Semkit packages. Use of the mixer will minimize operator set up of the machine for different kit configurations, reduce worker fatigue, and assures the user a more thorough and consistent mix, kit to kit.

Features:

- Single switch adjustment to mix common aerospace Semkit/ Techkit package configurations including:
- 2.5oz with 6 Inch dasher rod
- 2.5oz with 8 Inch dasher rod
- 6oz with 6 Inch dasher rod
- 6oz with 8 Inch dasher rod
- 8oz with 8 Inch dasher rod
- Automatic injection of catalyst (injection style Semkit/Techkit packages)
- Guarding door to ensure operator safety during mixing
- Stroke counter for improved consistency and quality
- Fully pneumatic non-electrical operation
- Heavy duty motor to manage very high viscosity materials

Technical Details:

- Machine/motor does NOT require lubrication
- Door composed of Lexan (PC)
- Slide plate and cap assembly composed from Delrin (Acetal)
- Minimum 3 cfm
- Operating requirements: 40 to 90 PSI
- Dry shop air required
- Unloaded Spindle = 100 RPM
- 30 Strokes/min (standard 6oz Cartridge)
- High torque motor for thick materials
- Spindle drive pins and Cap Assembly
