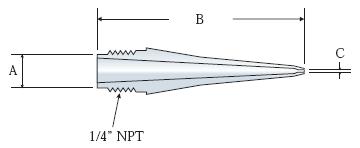

A =
Thread OD
B = Length
C = Tip Orifice
Nozzles can easily be cut back if required for larger orifice. |
|
|
|
|
|
Standard
Dispensing Nozzles |
|
Cartridge and valve nozzles attach with a 1/4" NPT thread for
leak free dispensing under high fluid pressures. Available in
different lengths, diameters and grades of plastic. Maximum
fluid pressure 100
psi. Commodity code
39269097.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fillet Lap
Dispensing Nozzles |
|
Cartridge and valve nozzles attach with a 1/4" NPT thread for
leak free dispensing under high fluid pressures. Fillet lap
nozzles in left or right hand step for edge and seam sealing. Maximum
fluid pressure 100
psi. Commodity code
39269097.
|
|
|
|
|
|
|
|
  |
|
|
|
Ribbon
Dispensing Nozzles |
|
Cartridge and valve nozzles attach with a 1/4" NPT thread for
leak free dispensing under high fluid pressures. Ribbon spreader
nozzles make wider, thinner bands of sealants. Maximum
fluid pressure 100
psi. Commodity code
39269097.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Roller
Dispensing Nozzles |
|
Cartridge and valve nozzles attach with a 1/4" NPT thread for
leak free dispensing under high fluid pressures. Roller spreader
nozzles make wider, thinner bands of sealants with materials fed
onto the nylon roller brush. Maximum
fluid pressure 100
psi. Commodity code
39269097.
|
|
|
|
|
|
|
|
Precision Metal Nozzles |
|
Cartridge and valve nozzles attach with a 1/4" NPT thread for
leak free dispensing under high fluid pressures. These all metal
nozzles offer precision application of fluids and pastes. 1.50"
long tubes with a range of diameters. Maximum
fluid pressure 100
psi. Commodity code
39269097.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
