Precision Dispense
Tip 14 Gauge 1.0" Long Aluminium Luer Lock Hub
Offering the widest
range of dispensing tips for use with syringe barrels, dispense
bottles, dispense valves and robots. All tips are industrial grade
safe for use to 100 psi air pressures and are certified
silicone-free. Luer lock secure attachment for leak free dispensing.
Blunt end aluminium needle tips 1" long in 14 gauge burr free
precision tube. 0.060" ID, 0.080" OD.
Precision aluminium hubs to burr-free stainless steel shafts.
This tip suits the most aggressive of fluids, chemicals,
solvents and many adhesives and gels. Tips are silver colour.
These tips are held in stock at our UK warehouse.
Standard luer lock twist fit hub for leak free attachment to all
syringes or valves. Supplied in a sealed pack of 50 tips or bulk
packs of 500. This tip features a metal hub to shaft so is more robust
when dispensing fluids such as solvents or solvent based glues. Suitable for use with syringe barrels, cartridges (using
TSD931-7 adapter) and with all metering
valves.
Adhesive Dispensing Ltd provide a wide range of equipment options for
dispensing almost all assembly fluids - from watery liquids, solvents,
primers and activators through to thick pastes, sealants, silicones,
gels and epoxies.
Suitable for...
Adhesives
Solvents
Epoxies
Gaskets
Greases
UV Cure
Solder Pastes
Tip Length
Materials
ID Size
OD Size
1.00" -
25.0mm
Aluminium/Stainless Steel
0.060" - 1.55mm
0.080" -
1.82mm
Pack
Part
Code
Lead
Time
Price
Add
50
TS14-1MPK
Ships in 24 hours
GBP
pack
500
TS14-1M
Ships in 24 hours
GBP
pack
All tips are supplied in sealed and labelled
packaging with part numbers and batch codes. We
ship these products to customers around the
world direct from our UK warehouse using fast
and tracked courier services. We hold large
stocks of dispensing components.

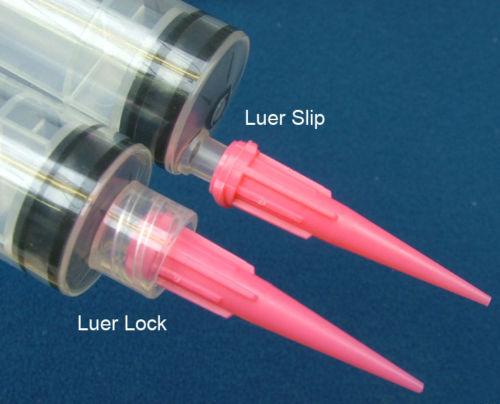

A luer lock (or luer-lok) tip
twists-on or twists-off the syringe barrel or fitting.
It provides a secure and leak-free attachment even under
high air pressures.
A luer slip syringe allows
the tip to be pushed on and so is more commonly found on
manual type syringes that are not used with air
pressure.
When dispensing using a pneumatic type
liquid dispenser, always use luer lock tips with luer
lock barrels. Our components are safe for use to 100 psi
pressure and will not come off during use.
Tips
can be easily removed at the end of a shift where a luer
lock tip cap is used to seal the barrel.
Prices are
in UK pounds. Vat is not charged on orders placed outside the EU
and any EU orders are exempt from VAT only if a valid company VAT number is
provided to us at time of order or before shipping. Products are covered by a 12-month warranty against
faults and malfunction.
All orders online are
encrypted for safety and security. Please read our
privacy agreement for details. We also
process phone or fax payments by credit and debit card. Please contact
our accounts department if you would like to open a credit account with
us.
Our new
web shop is available to order these products in a number of different
currencies. Please visit
www.adhesivedispensing.co.uk for more details.
Disclaimer: While reasonable efforts have
been made to ensure all information on this website is accurate,
Adhesive Dispensing Ltd. do not assume responsibility for any errors
or omissions. All specifications, illustrations, data and prices are
subject to change without notice.
Copyright
2005 - 2017 Adhesive Dispensing Ltd. All rights reserved.
Items
are shipped in the UK by a courier on a next day tracked and
insured service for all items that are available from stock. Items on a
lead time will be shipped as soon as they are available.
Using these
products
Aluminium tips are designed to work with all luer lock and
luer slip syringe barrels and fittings. They are fully compatible with
most fluids, adhesives, pastes and gels and useful for aggressive
liquids, solvents and chemicals.
Industrial Grade
Safe
All tips are safe for use up to 100 psi pressure. These
tips are not
for medical use on people or animals but are precision manufactured for industrial use.
They are non sterile products.
Silicone-Free
Components
Tips are certified
silicone-free components to ensure they do not contaminate any fluids or
adhesives that are dispensed from them.
