The TS5600 series
general purpose diaphragm valves are ideal for making controlled
deposits of most low to medium viscosity liquids. The wetted parts
are made from Delrin for low maintenance handling of reactive
adhesives such as UV Cure.
The
TS5600 Series dispense valves accurately control the application of
most low to medium viscosity fluids without drips.
The unique
seal-less design incorporates an inert polymer diaphragm that
isolates the actuator from the valve.
The adjustable
open/close stroke 0.13mm to 0.64mm (0.005 Inch to 0.025 Inch) allows for a
very fast response with positive shutoff. Wetted components are made
of inert plastics.
Takes a direct feed from anypressure pot,
cartridge or syringe and includes a selection of flexible fluid line
tubing and connectors. Valve open time can be as short as 15
milliseconds.
Model TS5621HD with Delrin wetted parts is
used for dispensing solvents, UV Cure adhesives, anaerobics and fluxes.
Simple to use withTS500R,
TS250,
TS350
digital timed controllers.
Adhesive Dispensing Ltd provide a wide range
of equipment options for dispensing almost all assembly fluids -
from watery liquids, solvents, primers and activators through to
thick pastes, sealants, silicones, gels and epoxies.

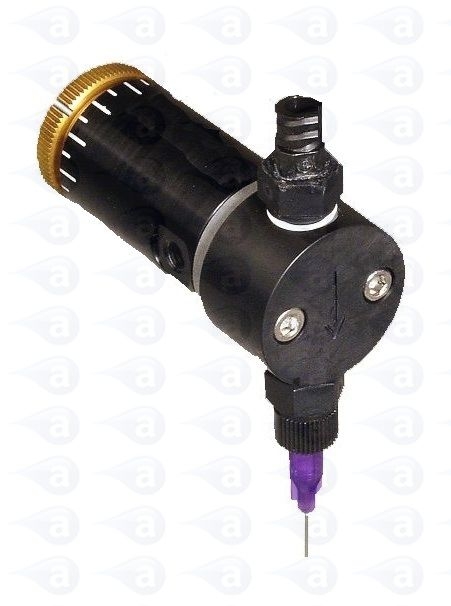

TS5621HD Delrin Air Valve
GBP each ex. Vat. Excludes
Carriage.
Lead Time: Usually Ships 72
Hours
Summary: Diaphragm valve
with horizontal design. Adhesive or liquid is fed under pressure
to the top of the fluid housing, the diaphragm opens to allow
flow to the tip from the bottom. Adjustable stroke control for
fine tuning. Delrin head and PTFE diaphragm. For use with UV cure, primers, solvents, inks,
oils, anaerobics. Supplied with airline hose and fittings
kit.
Item
Qty
Price
GBP
Add
TS5621HD
1
each
TS5621HD Specifications
Wetted Parts: Delrin, Delrin Fluid
Housing Head Colour: Black Size:
61mm L x 24mm Diameter Valve Weight: 59 Gram Fluid Viscosity Range: 1 to
50,000
CPS Repeatability: +/- 0.30% Cycle Rate: Up to 500 cycles/ minute
Flow Rate: 3432ml/Min (water) @ 100 psi Minimum Shot Size: 0.0075cc/ ml
Maximum Fluid Pressure: 100 psi Activation Air Pressure: Minimum 70psi Material Inlet
Thread Size: 1/4-28" UNF Material Outlet Thread Size:
1/4-28" UNF Mounting Hole
Thread Size: 10-32" UNF
Body Material: Aluminium
Valve Body Colour: Black Fluid Flow Path: Straight Warranty: 1 Year
More Info
Part
Code
Description
Specs
Lead Time
Pack
Price GBP
Add
Dispense Valve setup.
Air operated valves work with our range of
digital controller units including the TS250
below. Fluid can be fed
to the valve from our range of pressure
pots such as the 1/2 Litre and 2 Litre below.
TS250 Digital Air Valve Contoller 0-100 PSI
0.02-60 Second Timer, I/O port for automation
110/ 220V Power
24 Hours
1
each
TS2220 Pressure Pot 2 Litre 0-75 PSI
120mm W x 177mm H
Stainless Steel
24 Hours
1
each
More Info
Part
Code
Description
Specs
Lead Time
Pack
Price GBP
Add
Spares and Accessories.
Replacement wetted parts below are available
to ensure the diaphragm valve operates as
new. Easy to replace and provides reliable
and consistent performance.
5621HD-FHKIT Replacement Fluid Housing Kit
Black colour with spares kit
Delrin
24 Hours
1
each
5620TFE-DKIT Replacement Diaphragm Disc Kit
Grey colour with spares kit
PTFE Teflon
24 Hours
1
each
More Info
Part
Code
Description
Specs
Lead Time
Pack
Price GBP
Add
Fluid Fittings and
Fluid Lines. Used on valves and
pressure pots, these components provide a
leak free link using the convenient luer
lock design attachment. Quick disconnect
parts.
TSD931-54 Replacement Fluid Input Feed Fitting
Black colour fitting 1/4-28 Thread
Nylon
24 Hours
5
pack
TSD931-91 Replacement Fluid Tip Adapter Fitting
Black male luer to 1/4-28 Thread
Delrin
24 Hours
5
pack
TSD126-318BPK Replacement Fluid Line Feed Tube
Black colour tubing 18 Inch Long
Polyethylene
24 Hours
10
pack
TSD126-324BPK Replacement Fluid Line Feed Tube
Black colour tubing 24 Inch Long
Polyethylene
24 Hours
10
pack
TSD126-336BPK Replacement Fluid Line Feed Tube
Black colour tubing 36 Inch Long
Polyethylene
24 Hours
10
pack
TSD126-360BPK Replacement Fluid Line Feed Tube
Black colour tubing 60 Inch Long
Polyethylene
24 Hours
10
pack
More Info
Part
Code
Description
Specs
Lead Time
Pack
Price GBP
Add
Precision Dispensing Tips.
Used on valves and pressure pots, these
components provide a leak free link using
the convenient luer lock attachment. Tips to
handle UV adhesives and most
other liquids.
Delivery: Products
shipped by courier on a tracked and
insured service for stock items. Products on a
longer
lead time or built to order will be sent as soon as available. Customers are informed of
ship dates.
Typical Applications:-
Deposits of UV cure glues, Cyanoacrylate adhesives, solvents, primers,
inks, oils, flowable liquids, threadlock adhesives & many others.
