In-line Filter Trap for
Syringe Barrel Adapter Assemblies |
 |
|
Our precision
fittings offer safe and leak free connections from syringe barrels to
cartridges and pressure pots. This filter is used on air adapter
assemblies when dispensing low viscosity fluids such as solvent
based liquids, primers, activators and cyanoacrylates. Use as a
safeguard to prevent fluid damage. |

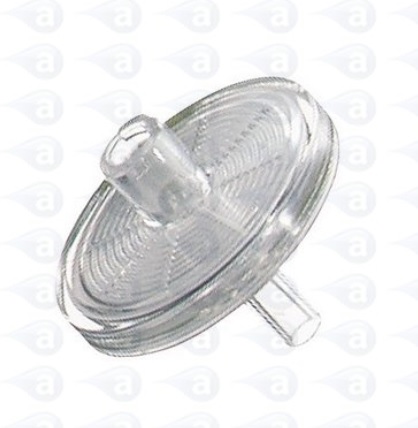

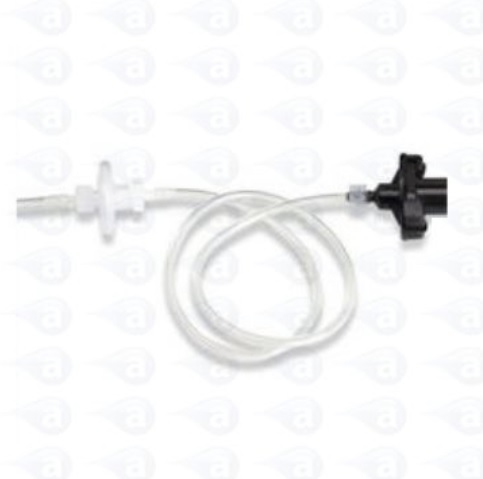

The
881-000-000 inline fluid filter is used in conjunction with pneumatic
syringe dispensers. It is attached to the air line hose assembly of
any size adapter receiver. It is used to reduce potential fluids and
adhesives from entering into a pneumatic dispenser via the syringe
adapter hose. The filter element will reduce the flow back and to
help to prevent
damage.

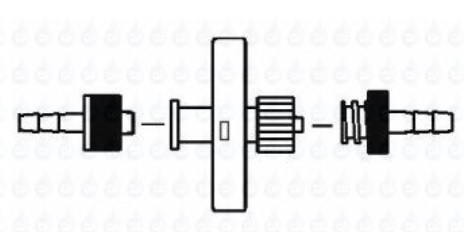

Use with low viscosity liquids up to a maximum pressure of 25
psi. The adapter hose is cut and the filter is attached using the
clamps and fittings included. When using 700 Series adapter heads, the
ID of the clear tubing needs to be stretched to 0.013" before installing
the supplied luer lock fittings.
Please
use care and attention when dispensing watery liquids with your syringe
type fluid dispenser.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all
assembly fluids - from watery liquids, solvents, primers and activators
through to thick pastes, sealants, silicones, gels and epoxies.
|
|
Specifications |
|
|
Part ID: |
881-000-000 |
 |
|
|
Material: |
Polyethylene/ polycarbonate/
steel |
|
|
Attachment: |
Luer lock
(crimp clamps supplied) |
|
|
Adapter
Size: |
All Adapters |
|
|
Colour: |
Natural |
|
|
Details: |
Silicone Free |
|
|
|
Pack |
Part
Code |
Lead Time |
Price |
Add |
|
1 |
881-000-000 |
24 Hours |
GBP |
each |
 |
|
 |
|
|
|
