The AD5600 series
general purpose diaphragm valves are ideal for making controlled
deposits of most low to medium viscosity liquids. The wetted parts
are made from Teflon for low maintenance handling of reactive
adhesives such as anaerobics and cyanoacrylates.
The
AD5600 series dispense valves accurately control the application of
most low to medium viscosity fluids without drips. The unique
seal-less design incorporates an inert polymer diaphragm that
isolates the actuator from the valve.
The adjustable
open/close stroke 0.13mm to 0.64mm (0.005 Inch to 0.025 Inch) allows for a
very fast response with positive shutoff. Wetted components are made
of inert plastics.
Takes a direct feed from anypressure pot,
cartridge or syringe and includes a selection of flexible fluid line
tubing and connectors.
Valve open time can be as short as 15
milliseconds. Model AD5622VT with Teflon wetted parts is
used for dispensing solvents, cyanoacrylates, anaerobics and fluxes.
Simple to use withTS500R,
TS250,
TS350
digital timed controllers.
Adhesive Dispensing Ltd provide a wide range
of equipment options for dispensing almost all assembly fluids -
from watery liquids, solvents, primers and activators through to
thick pastes, sealants, silicones, gels and epoxies.

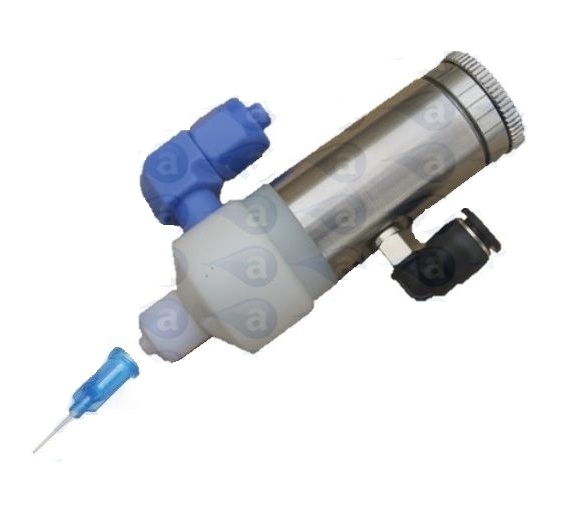

AD5622VT Teflon Air Valve
GBP each ex. Vat. Excludes
Carriage. Lead Time: Ships Within 24
Hours
Summary: Diaphragm valve
with vertical design. Adhesive or liquid is fed under pressure
to the side of the fluid housing, the diaphragm opens to allow
flow to the tip from the bottom. Adjustable stroke control for
fine tuning. Teflon head and diaphragm. Make rapid dots or
controlled beads. For Cyanoacrylates, primers, solvents, inks,
oils, anaerobics. Comes with airline hose and fittings kit. Use
with any pressure pot or cartridge system.Read more...
Item
Qty
Price
GBP
Add
AD5622VT
1
each
AD5622VT Specifications
Wetted Parts: Teflon Fluid
Housing Head Colour: White Size:
89mm L x 39mm Diameter Valve Weight: 124 Gram Fluid Viscosity Range: 1 to
50,000
CPS Repeatability: +/- 0.30% Cycle Rate: Up to 500 cycles/ minute
Flow Rate: 7250ml/Min (water) @ 100 psi Minimum Shot Size: 0.0075cc/ ml
Maximum Fluid Pressure: 100 psi Activation Air Pressure: Minimum 70psi Material Inlet
Thread Size: 1/8 Inch NPT Material Outlet Thread Size:
1/4-28 Inch UNF Mounting Hole
Thread Size: 10-32 Inch UNF
Body Material: Aluminium
Valve Body Colour: Black Fluid Flow Path: 90 Degrees Warranty: 1 Year
TS250 Digital Valve Controller
GBP each ex. Vat. Excludes
Carriage. Lead Time: Ships
Within 24 Hours
Summary: This air-powered
dispenser has 0-100 PSI air output for controlling TS1212 valve. It is dual voltage so can be used globally. We ship this
with accessories ready to use out of the box.
Learn more...
Item
Qty
Price
GBP
Add
TS250
1
each
TS250 Specifications
Type: Electro Pneumatic Timed Dispenser
Initiate: Electric Foot Switch or I/O Port Air Pressure Display: Analogue
Gauge Timer Display: Digital LCD Timer: 0.02 to 60 seconds Dispense Modes: Timed or Continuous Output Air Pressure: Up to 100 psi Input Air Pressure: 152 x 165 x 178 mm
Weight: 1.2kg (2.6lb)
Input Voltage: 110V - 220V AC Cycle Rate: Up to 600 cycles/ minute
Timer Tolerances: +/- 0.001% Meets or Exceeds: CE, TUV-GS, NRTL Warranty: 1 Year
Pressure Pot 500 Gram
GBP each ex. Vat. Excludes carriage. Lead Time: Ships Within 24 Hours
Summary: Premium tank unit
with lid, adjustable air pressure gauge, stainless steel tube
fitting, 1/4 Inch OD flexible tube kit, user guide. CE approved.
Use with AD5600 series valves.Learn
more...
Product Code
Qty
Price
GBP
Add
TS1215
1
each
TS1215 Specifications
Wetted Parts: Polyethylene Outer
Size: 115mm W x 180mm H Inner Chamber Size: 102mm Wide x 152mm High Fluid
Viscosity Range: Use up to 20,000
CPS Weight: 1.5kg Maximum Air Pressure: 60 psi Air Inlet Connection: 1/8 Inch NPT Thread Material Outlet Connection:
1/4 Inch OD Tubing
Materials: Aluminium
Meets or Excees: CE Warranty: 1 Year
Pressure Pot 2 Litre
GBP each ex. Vat. Excludes carriage. Lead Time: Ships Within 24 Hours
Summary: Premium tank unit
with lid, adjustable air pressure gauge, stainless steel tube
fitting, 1/4 Inch OD flexible tube kit, user guide. CE approved.
Use with AD5600 series valves.Learn
more...
Product Code
Qty
Price
GBP
Add
TS2220
1
each
TS2220 Specifications
Wetted Parts: Polyethylene Outer
Size: 128mm W x 185mm H Inner Chamber Size: 120mm W x 177mm H Fluid
Viscosity Range: Use up to 30,000
CPS Weight: 4.5kg Maximum Air Pressure: 75 psi Air Inlet Connection: 1/4 Inch NPT Thread Material Outlet Connection:
1/4 Inch OD Tubing
Materials: Stainless Steel/ Aluminium
Meets or Excees: CE Warranty: 1 Year
Diaphragm Valve Spares
Full range of spares for use with air
operated diaphragm valves. Replacement fluid housing heads,
diaphragm discs, tip adapter fittings and fluid input
fittings.
Luer lock fluid lines in PE material.
Designed to feed liquids, adhesives and fluids under pressure to 100 PSI.
Use with valves and pressure pots. Quick
twist-on/ twist-off connection. 2.54mm ID. Clear and black
tubes are available from stock. Price is for sealed packs of (10).
Learn more ...
Delivery: Products
shipped by courier on a tracked and
insured service for stock items. Products on a
longer
lead time or built to order will be sent as soon as available. Customers are informed of
ship dates.
Typical Applications:-
Deposits of UV cure glues, Cyanoacrylate adhesives, solvents, primers,
inks, oils, flowable liquids, threadlock adhesives & many others.
