Home > Retainers > TS918-6




6 Ounce Cartridge Retainer with Bench Stand ...
Our precision components provide safe and leak free fluid dispensing from cartridges. This aluminium retainer system is for pressurising all 6 Ounce dispensing cartridges. A safe and leak free high pressure reservoir system.

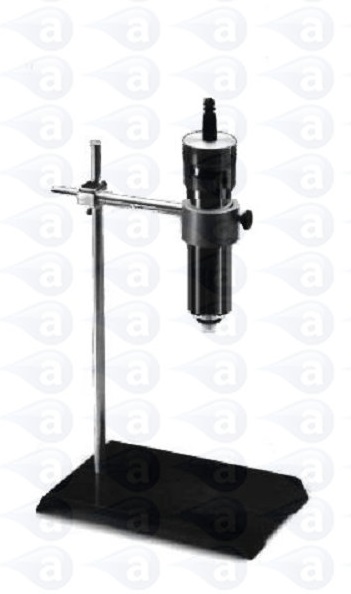

TS918-6 Cartridge Reservoir Bench Stand Techcon

A cartridge reservoir with cap and airline hose for direct feed to any metering valve or direct dispensing from a timed dispenser. 6 Ounce or 177cc/ ml. Ideal for pastes, grease, adhesives, compounds, UV's and other fluids.

Includes bayonet cap, retainer body, cap, hose, cartridge, plunger and 1/4 Inch NPT to male luer lock fitting. Base stand includes upright rod, adjustable bracket and clamp. Easy connect to any adjustable air regulator using the supplied airline and connector.

Use this systems to dispense direct from 6 Ounce cartridges or use it as a reservoir to feed material to dispensing valves. Cartridges, plungers and nozzles are all available direct from stock.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


TS918-6

GBP    each ex. Vat.
Excludes carriage.

Product Code: TS918-6
Lead Time:
Ships Within 48-72 Hours

Summary: Pneumatic Cartridge Reservoir with bench stand.


Product Code Qty Price GBP Add
TS918-6 1   each

General Use: Cartridges will provide a feed of paste, adhesive, liquids and gels direct to a dispensing tip or nozzle or as a reservoir to feed dosing valves.

Common Applications:- Dots and beads of solder paste, Dots and beads of solder flux, Grease to bearings, PVA glue to furniture joints, RTV to seal seams, Silicone dots to bond products, Gasket sealant repair, Shots of roach insecticides, General adhesive applications.

Items are shipped in the UK by a courier on a tracked and insured service with products that are available from stock. Items on a longer lead time will be shipped as soon as they are made available.

Warranty: All items are covered by a 1 (one) Year manufacturers warranty against fault.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

The items are robust and handle most liquids and pastes dispensed from them. The cap uses a hard wearing rubber gasket seal for the retainer that can be replaced after very long periods of use. Gaskets are held in stock.

Materials: Steel/Aluminium
Colour: Black
Attachment: Bayonet retainer
Size: 6oz (177ml/ 177cc)
Maximum Pressure: 100 PSI

Weight: 700g
.


Cartridge Plunger Kits

Lead Time: Ships Within 24 Hours

Full range of plastic cartridge and plunger kits to fit all manual guns. Each kit includes the same number of (10) cartridges and (10) plungers in the pack. Industrial grade and silicone free plastic parts compatible with adhesives & sealants. Read more...

Code Size Price GBP Add

TS25CKIT

2.5oz   pack

TS60CKIT

6oz   pack

TS80CKIT

8oz   pack

TS110CKIT

10oz   pack

TS120CKIT

12oz   pack

Dispensing Nozzles

Lead Time: Ships Within 24 Hours

A wide range of plastic nozzles with 1/4" NPT thread for leak free attachment to cartridges. Select by nozzle length & hole outlet size. In sealed packs of (10) nozzles, direct from stock. Read more...

Code Size Price GBP Add

TS216

2.5" L x 1/16"   pack

TS218

2.5" L x 1/8"   pack

TS416

4" L x 1/16"   pack

TS418

4" L x 1/8"   pack

TS616

6" L x 1/16"   pack

TS618

6" L x 1/8"   pack

      Cartridge HDPE Adhesive Dispensing Techcon Semco   Adhesive Dispensing Nozzle Cartridge Techcon Semco
  6oz Pneumatic Cartridge Gun     6oz Cartridge Plunger Kit   TS216 1/16" ID 2.5" L Nozzle

  Use with industry standard cartridges
  Hands free benchtop dispensing
  Works with all pneumatic dispensers
  Lightweight yet Robust Construction
  Quick Bayonet Attachment
  Low Cost Dispensing Solutions
