High speed dispensing valves for making micro dots and beads of
adhesives, inks, solvents and other fluids. The inner needle shuts
off near the tip end which improves control and eliminates drips.
Use these valves with our standard pneumatic timed controllers or
hand lever for non-timed.
Use our valve selection guide page. Precision valves will
dispense accurate deposits direct from syringes, cartridges or
pressure pots. Valves operate with minimal maintenance, ensuring
clean and accurate dispensing & can be fixed on a production line or
onto anXYZ robot.
Adhesive Dispensing Ltd provide a wide range
of equipment options for dispensing almost all assembly fluids -
from watery liquids, solvents, primers and activators through to
thick pastes, sealants, silicones, gels and epoxies.

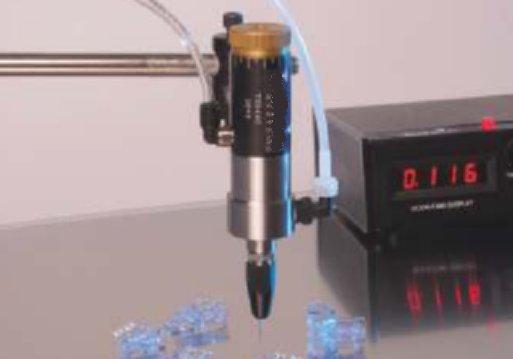

Precision dosing valves with a needle assembly to apply precise dots
or very fine beads of low to medium viscosity adhesives and fluids
such as activators, inks, gels, solvents, lubricants, glue's,
chemicals and UV cure adhesives. Needle design at tip end reduces
dead space for a very fast shut off and higher levels of control.
Needle valves are designed to apply micro shots without
drips. The valve design is vertical with fluid flow from the side by
syringe, cartridge or fluid line feed (from pressure pot). Use black
fluid line feed tubing with UV cure adhesives.
Please use our
valve selection guide page. Precision valves will dispense accurate
deposits direct from syringes, cartridges or pressure pots. Valves
operate with low maintenance, ensuring fast, clean and accurate
dosing whether used by hand, as part of a production line or when
mounted onto an XYZ robot.
Do not use this valve for
reactive adhesives or fluids such as Cyanoacrylates.
GBP each ex. Vat. Excludes
Carriage.
Lead Time: Usually Ships 72
Hours
Summary: Precision valve
with needle assembly to dispense precise dots or very fine beads
of low to medium viscosity adhesives and fluids such as
anaerobics, activators, inks, gels, solvents, lubricants,
chemicals and UV's. Needle seal at tip end prevents dead space
for very fast shut off when dispensing micro dots without drips.
Standard aluminium version.
Read more...
Item
Qty
Price
GBP
Add
TS5420
1
each
TS5420 Specifications
Wetted Parts: Stainless Steel, Teflon Body Material: Aluminium
Valve Body Colour: Black Size:
118.8mm L x 28.5mm Diameter Valve Weight: 136 Gram Fluid Viscosity Range: 1 to
100,000
CPS Repeatability: +/- 0.30% Cycle Rate: Up to 500 cycles/ minute
Flow Rate: 900ml/Min (water) @ 100 psi Minimum Shot Size: 0.003cc/ ml
Maximum Fluid Pressure: 300 psi Activation Air Pressure: Minimum 70psi Material Inlet
Thread Size: 1/8" NPT Material Outlet Thread Size:
Male Luer Lock Mounting Hole Thread Size: 1/4-20UNC-2B
Fluid Flow Path: Straight Warranty: 1 Year
TS5420SS Air Operated Stainless Body
Needle Valve
GBP each ex. Vat. Excludes
Carriage.
Lead Time: Usually Ships 5-7
Days
Summary: Precision valve
with needle assembly to dispense precise dots or very fine beads
of low to medium viscosity adhesives and fluids such as
anaerobics, activators, inks, gels, solvents, lubricants,
chemicals and UV's. Needle seal at tip end prevents dead space
for very fast shut off when dispensing micro dots without drips.
Stainless steel version. Read more...
Item
Qty
Price
GBP
Add
TS5420SS
1
each
TS5420SS Specifications
Wetted Parts: Stainless Steel, Teflon Body Material: Stainless Steel
Valve Body Colour: Silver Size:
118.8mm L x 28.5mm Diameter Valve Weight: 165 Gram Fluid Viscosity Range: 1 to
100,000 CPS Repeatability: +/- 0.30% Cycle Rate: Up to 500 cycles/ minute
Flow Rate: 900ml/Min (water) @ 100 psi Minimum Shot Size: 0.003cc/ ml
Maximum Fluid Pressure: 300 psi Activation Air Pressure: Minimum 70psi Material Inlet
Thread Size: 1/8" NPT Material Outlet Thread Size:
Male Luer Lock Mounting Hole Thread Size: 1/4-20UNC-2B
Fluid Flow Path: Straight Warranty: 1 Year
TS5440 Air Operated Stainless Body
Needle Valve
GBP each ex. Vat. Excludes
Carriage.
Lead Time: Usually Ships 72
Hours
Summary: Microshot valve
with needle assembly to dispense precise dots or very fine beads
of low to medium viscosity adhesives and fluids such as
anaerobics, activators, inks, gels, solvents, lubricants,
chemicals and UV's. Needle seal at tip end prevents dead space
for very fast shut off when dispensing micro dots without drips.
High performance stainless steel version.
Read more...
Item
Qty
Price
GBP
Add
TS5440
1
each
TS5440 Specifications
Wetted Parts: Stainless Steel, Teflon
Body Material: Stainless Steel
Valve Body Colour: Silver Size:
118.8mm L x 28.5mm Diameter Valve Weight: 136 Gram Fluid Viscosity Range: 1 to
100,000
CPS Repeatability: +/- 0.30% Cycle Rate: Up to 500 cycles/ minute
Flow Rate: 900ml/Min (water) @ 100 psi Minimum Shot Size: 0.003cc/ ml
Maximum Fluid Pressure: 300 psi Activation Air Pressure: Minimum 70psi Material Inlet
Thread Size: 1/8" NPT Material Outlet Thread Size:
Male Luer Lock Mounting Hole Thread Size: 1/4-20UNC-2B
Fluid Flow Path: Straight Warranty: 1 Year
Pressure Pot 2 Litre
GBP each ex. Vat. Excludes carriage.
Lead Time: Ships 24 Hours
Summary: Premium tank unit
with lid, adjustable air pressure gauge, stainless steel tube
fitting, 1/4" OD flexible tube kit, user guide. CE approved.
Use with all diaphragm valves. Learn
more...
Product Code
Qty
Price
GBP
Add
TS2220
1
each
TS2220 Specifications
Wetted Parts: Polyethylene Outer
Size: 128mm W x 185mm H Inner Chamber Size: 120mm W x 177mm H Fluid
Viscosity Range: Use up to 30,000
CPS Weight: 4.5kg Maximum Air Pressure: 75 psi Air Inlet Connection: 1/4" NPT Thread Material Outlet Connection:
1/4" OD Tubing
Materials: Stainless Steel/ Aluminium
Meets or Excees: CE Warranty: 1 Year
Pressure Pot 5 Litre
GBP each ex. Vat. Excludes carriage.
Lead Time: Ships 24 Hours
Summary: Premium tank unit
with lid, adjustable air pressure gauge, stainless steel tube
fitting, 1/4" OD flexible tube kit, user guide. CE approved.
Use with all diaphragm valves. Learn
more...
Product Code
Qty
Price
GBP
Add
TS2250
1
each
TS2250 Specifications
Wetted Parts: Polyethylene Outer
Size: 180mm W x 271mm H Inner Chamber Size: 162mm W x 242mm H Fluid
Viscosity Range: Use up to 30,000
CPS Weight: 6.4kg Maximum Air Pressure: 75 psi Air Inlet Connection: 1/4" NPT Thread Material Outlet Connection:
1/4" OD Tubing
Materials: Stainless Steel/ Aluminium
Meets or Excees: CE Warranty: 1 Year
TS250 Digital Valve Controller
GBP each ex. Vat. Excludes
Carriage.
Lead Time: Ships
24 Hours
Summary: This air-powered
dispenser has 0-100 PSI air output for controlling TS1212 valve. It is dual voltage so can be used globally. We ship this
with accessories ready to use out of the box.
Learn more...
Item
Qty
Price
GBP
Add
TS250
1
each
TS250 Specifications
Type: Electro Pneumatic Timed Dispenser
Initiate: Electric Foot Switch or I/O Port Air Pressure Display: Analogue
Gauge Timer Display: Digital LCD Timer: 0.02 to 60 seconds Dispense Modes: Timed or Continuous Output Air Pressure: Up to 100 psi Input Air Pressure: 152 x 165 x 178 mm
Weight: 1.2kg (2.6lb)
Input Voltage: 110V - 220V AC Cycle Rate: Up to 600 cycles/ minute
Timer Tolerances: +/- 0.001% Meets or Exceeds: CE, TUV-GS, NRTL Warranty: 1 Year
TS500R Digital Valve Controller
GBP each ex. Vat. Excludes
Carriage.
Lead Time: Usually Ships 72
Hours
Summary: Universal digital
valve controller with foot pedal control or remote I/O
connection. Make rapid dots or beads using the timer. Memory
storage function. Low pressure alarm. Works with all
dispensing valves. Learn more...
Item
Qty
Price
GBP
Add
TS500R
1
each
TS500R Specifications
Type: Electro Pneumatic Timed Dispenser
Initiate: Electric Foot Switch or I/O Port Air Pressure Display: Digital
LCD
Gauge Timer Display: Digital LCD Timer: 0.008 to 60 seconds Dispense Modes: Timed or Continuous Output Air Pressure: Up to 100 psi Input Air Pressure: 254 x 191 x 102 mm
Weight: 2.6kg (5.8lb)
Input Voltage: 110V - 220V AC Cycle Rate: Up to 600 cycles/ minute
Timer Tolerances: +/- 0.001% Meets or Exceeds: CE, TUV-GS, NRTL Warranty: 1 Year
TS5420 Needle Valve Seal Repair Kit
5420-SEALKIT
GBP each ex. Vat. Excludes
Carriage.
Lead Time: Usually Ships 72
Hours
Summary: A maintenance kit
for use with the TS5420 and TS5420SS air operated needle valves.
Includes fluid inlet fitting, cup seal fitting and rubber
orings. Easy installation and repair of these valves when seals
require replacement. Supplied in sealed and labelled packs with
fitting instructions. Read more...
Item
Qty
Price
GBP
Add
5420-SEALKIT
1
each
TS5420 Needle Valve Main Repair Kit
5420-VALVEKIT
GBP each ex. Vat. Excludes
Carriage.
Lead Time: Usually Ships 72
Hours
Summary: Full repair kit
for use with the TS5420 and TS5420SS air operated needle valves.
Includes 5420-SEALKIT, full needle & piston assembly, nozzle,
washers & orings. Easy installation & repair of these valves
when seals require replacement. Sealed and labelled packs with
fitting instructions. Read more...
Item
Qty
Price
GBP
Add
5420-VALVEKIT
1
each
TS5440 Needle Valve Seal Repair Kit
5440-SEALKIT
GBP each ex. Vat. Excludes
Carriage.
Lead Time: Usually Ships 72
Hours
Summary: A maintenance kit
for use with the TS5440 stainless steel air operated needle
valves. Includes fluid inlet fitting, cup seal fitting and
rubber orings. Easy installation and repair of these valves when
seals requirement replacement. Supplied in sealed and labelled
packs with fitting instructions. Read more...
Item
Qty
Price
GBP
Add
5440-SEALKIT
1
each
TS5440 Needle Valve Main Repair Kit
5440-VALVEKIT
GBP each ex. Vat. Excludes
Carriage.
Lead Time: Usually Ships 72
Hours
Summary: Full repair kit
for use with the stainless steel TS5440 air operated needle
valves. Includes 5440-SEALKIT, full needle & piston assembly,
nozzle, washers & orings. Easy installation and repair of these
valves when seals requirement replacement. Supplied in sealed
and labelled packs with fitting instructions.
Read more...
Item
Qty
Price
GBP
Add
5440-VALVEKIT
1
each

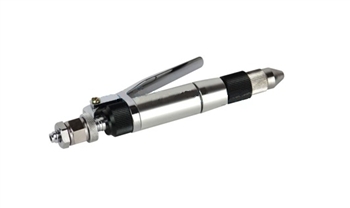

ADL2030 Aluminium Body Manual Lever
Needle Valve
GBP each ex. Vat. Excludes
Carriage.
Lead Time: Usually Ships 24
Hours
Summary: Hand lever
operated valve with needle assembly to dispense controlled beads
of low to medium viscosity adhesives and fluids such as
anaerobics, activators, inks, gels, solvents, lubricants,
chemicals and UV's. Simple hand lever control for on/off flow.
Takes a direct feed from syringe barrel, cartridge reservoir or
pressure pot. Read more...
Item
Qty
Price
GBP
Add
ADL2030
1
each
ADL2030 Specifications
Wetted Parts: Stainless Steel,
Aluminium Body Material: Aluminium
Valve Body Colour: Silver Size:
150.0mm L x 18.0mm Diameter Valve Weight: 150 Gram Fluid Viscosity Range: 1 to
50,000
CPS Repeatability: n/a (manual valve) Cycle Rate:
n/a (manual valve)
Flow Rate: 500ml/Min (water) @ 100 psi Minimum Shot Size: n/a (manual
valve)
Maximum Fluid Pressure: 100 psi Activation Air Pressure: n/a (manual
valve) Material Inlet
Thread Size: 6mm Material Outlet Thread Size:
Male Luer Lock Fluid Flow Path: Straight Warranty: 1 Year
Fluid Line Tubes
Summary: Flexible feed
tubing for use with pressure pots, cartridges, valves and
syringes. In 1/4" OD or 3/8" OD. Safe for use to 100 psi and
compatible with most liquids, adhesives and solvents. Smaller
bore fluid lines with male to female luer lock for quick
connection to valves and tanks. In clear or black for use with
all liquids and UV cure. Learn more...
Dispensing Fittings
Summary: Fittings for use
with metering valves, pressure pots, cartridges, syringes and
feed tubing. Luer lock, compression, threaded, barbed and elbow.
In polypropylene, nylon, polyethylene and stainless steel.
Suitable for use with most liquids, adhesive and chemicals. Low
cost solutions for fluid feed and flow. Supplied in sealed
packs. Learn more...
Delivery: Products
shipped by courier on a tracked and
insured service for stock items. Products on a
longer
lead time or built to order will be sent as soon as available. Customers are informed of
ship dates.
Typical Applications:-
Deposits of UV cure glues, lubricants adhesives, solvents, primers,
inks, oils, flowable liquids, threadlock adhesives & many other
assembly fluids.
Copyright
2017 Adhesive Dispensing Ltd. All transactions subject to Adhesive
Dispensing Ltd standard
Terms & Conditions, E&OE.
Prices are
in UK pounds. Vat is not charged on orders placed outside the EU
and any EU orders are exempt from VAT only if a valid company VAT number is
provided to us at time of order or before shipping. Products are covered by a 12-month warranty against
faults and malfunction.
All orders online are
encrypted for safety and security. Please read our
privacy agreement for details. We also
process phone or fax payments by credit and debit card. Please contact
our accounts department if you would like to open a credit account with
us.
Disclaimer: While reasonable efforts have
been made to ensure all information on this website is accurate,
Adhesive Dispensing Ltd. do not assume responsibility for any errors
or omissions. All specifications, illustrations, data and prices are
subject to change without notice.
