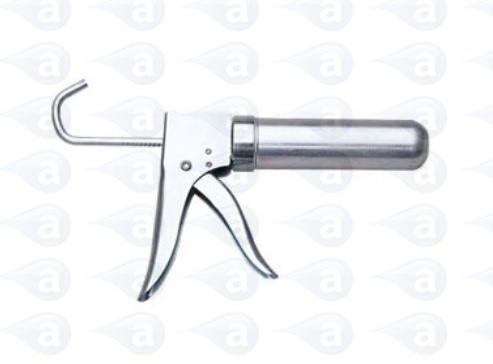

| 6 Ounce
Size Manual Cartridge Gun Applicator |
|
|
|
Cartridge gun dispensers are designed for the controlled
application of pastes, gels, adhesives and fluids. High quality
cartridge gun dispensing systems.
Our guns are covered by a one year warranty.
This version gun is for all 6oz size industry
cartridges. |
|
|
|
|
|
A high quality manual
cartridge gun with quick attach threaded retainer and slight reverse rod action
to reduce oozing. 6oz size (177cc approx). Suited to controlled lines or
potting of most adhesives, fluids, sealants, RTV, grease, gels, long cure or
single part epoxies, mastics and potting compounds.
Unscrew the
metal retainer body from the handle
on the gun (threaded fitting). Load in a plastic dispensing cartridge. Ensure the manual metal rod is pulled fully back by
twisting the push rod end facing downwards and pulling it back. Replace the
metal retainer. Attach a threaded nozzle
or use a male luer lock adapter for attachment of any standard
needle tips.
Squeeze trigger for flow. Release of trigger stops material oozing.
Optional retainer bodies are available to convert this gun to use different
cartridge sizes. This gun includes
(1) gun, (1) cartridge, (1)
plunger, (1)
flange cap, (1)
tip cap and (1)
nozzle, (1)
tip adapter and (1)
tip. Or select the full gun kit that includes (10)
of each part above included with the gun applicator. |
|
|
|
The guns are robust and handle most liquids and pastes dispensed from
them.
Materials:
Steel/Aluminium
Colour: Silver
Attachment: Threaded retainer
Size: 6oz (177ml/ 177cc)
Weight: 500g
Items
are shipped in the UK by a courier on a next day tracked and
insured service for all items that are available from stock. Items on a
lead time will be shipped as soon as they are made available.
Warranty: All guns are covered by a 1 (One) Year manufacturers warranty
against fault. |
|
|
Typical Uses: Guns are portable and can be used in a factory
production or maintenance area, in an assembly department as well as for
repair and re-work. Guns are commonly used in the field for repair or
maintenance applications.
Common Applications:- Deposits
of solder paste, Deposits of solder flux, Grease to bearings, Potting
components with epoxy, RTV to edge seams, Silicone shots to bond
products, Gasket sealant repair, Aircraft maintenance work, General
adhesive applications.
Adhesive Dispensing Ltd provide a wide
range of equipment options for dispensing almost all assembly fluids - from
watery liquids, solvents, primers and activators through to thick pastes,
sealants, silicones, gels and epoxies. |
|
|
|
|
|
|
More Info |
Part
No. |
Specs |
Colour |
Lead Time |
Pack |
Price GBP |
Add |
|
850 series manual cartridge guns are
lightweight hand operated applicators with
threaded retainers to accept cartridges for the application of most sealants, adhesives, potting compounds,
etc. All metal construction.
Read more... |
|
 |
221830
Manual Cartridge Gun
 Datasheet |
6 Ounce
Threaded Retainer |
Silver |
24 Hours |
1 |
each |
 |
|
|
|
More Info |
Part
No. |
Specs |
Colours |
Lead Time |
Pack |
Price GBP |
Add |
|
Industrial grade cartridges and
plungers for controlled dispensing
of sealants, adhesives, glues, silicones,
solvents, pastes and resins. All cartridges
feature a 1/4 Inch nozzle thread.
Cartridges are safe for use to 100 psi
pressure and are certified silicone free
plastics.
Read more... |
|
 |
TS60CKIT
6oz Cartridge Plunger Kit |
1.59" OD/ 7.14" Long |
Natural/ White |
24 Hours |
10 |
pack |
|
|
|
TS60CP
6oz Cartridge Plunger Kit |
1.59" OD/ 7.14" Long |
Natural/ Blue |
24 Hours |
10 |
pack |
|
|
|
TS60CWP
6oz Cartridge Plunger Kit |
1.59" OD/ 7.14" Long |
Natural/ Black |
24 Hours |
10 |
pack |
|
|
|
TS60C
6oz Cartridge HDPE |
1.59" OD/ 7.14" Long |
Natural |
24 Hours |
10 |
pack |
|
|
|
TS60C-LD
6oz Cartridge LDPE |
1.59" OD/ 7.14" Long |
Natural |
72 Hours |
100 |
pack |
|
|
|
TS60C-GREEN
6oz Cartridge HDPE |
1.59" OD/ 7.14" Long |
Green |
2 Weeks |
500 |
pack |
|
|
|
TS60C-BLACK
6oz Cartridge HDPE |
1.59" OD/ 7.14" Long |
Black |
7 Days |
100 |
pack |
|
 |
TS1WP
Cartridge Plunger MDPE 2.5, 6,
8 and 12 Ounce only |
1.59" OD |
Natural |
24 Hours |
10 |
pack |
|
|
|
TS1P
Cartridge Plunger LDPE 2.5, 6,
8 and 12 Ounce only |
1.59" OD |
Blue |
24 Hours |
10 |
pack |
|
|
|
TS1PB
Cartridge Plunger LDPE 2.5, 6,
8 and 12 Ounce only |
1.59" OD |
Black |
24 Hours |
10 |
pack |
|
|
|
TS1WP-RIB
Cartridge Plunger MDPE 2.5, 6,
8 and 12 Ounce only |
1.59" OD |
Natural |
24 Hours |
10 |
pack |
|
|
|
|
More Info |
Part
No. |
Specs |
Colours |
Lead Time |
Pack |
Price GBP |
Add |
|
Reusable flange end caps and threaded
tip caps for sealing both ends of
the cartridge air tight once materials have
been transferred into them. Supplied in
sealed packs with labels and batch codes. Cartridge
caps are certified silicone free
plastics.
Read more... |
|
 |
TS2C
End Cap LDPE 2.5, 6, 8 and 12 Ounce
only |
40mm Dia. |
Red |
24 Hours |
10 |
pack |
|
 |
AD3PB
Tip Cap Threaded Seal HDPE |
21mm Dia. |
Blue |
24 Hours |
10 |
pack |
|
 |
TS3P
Tip Cap Threaded Seal HDPE |
21mm Dia. |
Red |
24 Hours |
10 |
pack |
|
|
|
TS6P-RED
Tip Cap Threaded Seal HDPE |
21mm Dia. |
Red |
24 Hours |
10 |
pack |
|
 |
TS6P-BLACK
Tip Cap Threaded Cap |
21mm Dia. |
Red |
2-3 Weeks |
1000 |
pack |
|
|
|
TS4P-RED
Tip Cap Push-In Cap |
21mm Dia. |
Red |
1-2 Weeks |
1000 |
pack |
|
 |
TS5P-BLACK
Tip Cap Push-In Cap |
21mm Dia. |
Black |
2-3 Weeks |
1000 |
pack |
|
 |
TS5P-GREEN
Tip Cap Push-In Cap |
21mm Dia. |
Green |
2-3 Weeks |
1000 |
pack |
|
|
|
|
More Info |
Part
No. |
Specs |
Colours |
Lead Time |
Pack |
Price GBP |
Add |
|
Industrial dispensing nozzles
with 1/4 Inch thread for leak free
attachment to cartridges and dispensing
valves. Supplied in
sealed packs with labels and batch codes. Cartridge
nozzles are safe to 100 PSI and are certified silicone free
plastics.
Read more... |
|
 |
TS216
Standard Nozzle |
2.5" L x 1/16" ID HDPE |
Natural |
24 Hours |
10 |
pack |
|
|
|
TS218
Standard Nozzle |
2.5" L x 1/8" ID HDPE |
Natural |
24 Hours |
10 |
pack |
|
|
|
TS218-LD
Standard Nozzle |
2.5" L x 1/8" ID LDPE |
Natural |
24 Hours |
50 |
pack |
|
|
|
TS416
Standard Nozzle |
4.0" L x 1/16" ID HDPE |
Natural |
24 Hours |
10 |
pack |
|
|
|
TS416-LD
Standard Nozzle |
4.0" L x 1/16" ID LDPE |
Natural |
24 Hours |
50 |
pack |
|
|
|
TS418
Standard Nozzle |
4.0" L x 1/8" ID HDPE |
Natural |
24 Hours |
10 |
pack |
|
|
|
TS432
Standard Nozzle |
4.0" L x 1/32" ID HDPE |
Natural |
24 Hours |
10 |
pack |
|
|
|
TS432-LD
Standard Nozzle |
4.0" L x 1/32" ID LDPE |
Natural |
24 Hours |
50 |
pack |
|
|
|
TS490
Standard Nozzle |
4.0" L x 3/32" ID HDPE |
Natural |
24 Hours |
10 |
pack |
|
 |
TS1050
Ribbon Spread Nozzle |
4.0" L x 0.50" W HDPE |
Natural |
24 Hours |
10 |
pack |
|
|
|
TS1075
Ribbon Spread Nozzle |
4.0" L x 0.75" W HDPE |
Natural |
24 Hours |
10 |
pack |
|
|
|
TS1100
Ribbon Spread Nozzle |
4.0" L x 1.0" W HDPE |
Natural |
24 Hours |
10 |
pack |
|
|
|
TS1175
Ribbon Spread Nozzle |
4.0" L x 1.75" W HDPE |
Natural |
24 Hours |
10 |
pack |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
