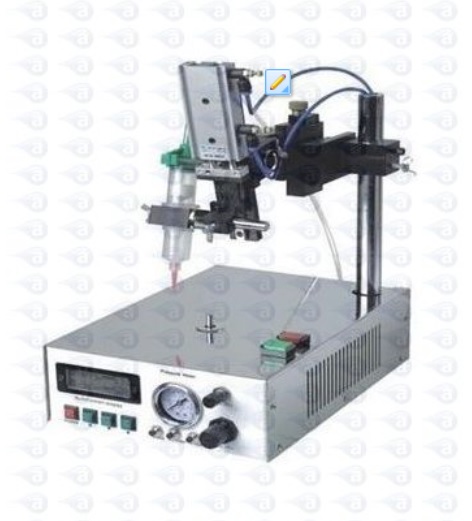

| Z Axis
Rotary Dispensing Table |
|
|
|
Automated dispensing station for making
controlled deposits to circular components. The table disc spins and
the syringe barrel indexes down. The deposit is made to the part and
the syringe barrel indexes up. Easy to adjust and achieve accurate
beads.
|
|
|
|
|
Features
Dispenses to circlular spinning
products
Adjustable Z-axis including
tilt control
Head auto indexes down & retracts
Full
adjustment to head position
Uses 30cc and 55cc barrels
Variable speed table
Simple to set up and
operate
Fully programmable for perfect dispensing
This compact cost effective
dispenser sits on the work bench and requires an air input from any
compressor or factory mains supply delivering 60 psi or above.
All products
are industrial grade and are covered by our no-quibble One Year warranty.
Dispensers are supplied with user guide to assist with the
initial setting up process. Customers can contact us for full
support and advice in using this timed barrel rotary dispensing station. |
|
|
|
|
|
|
|
|
|
An adjustable vacuum provides
suck-back to the tip to prevent watery liquids from dripping. We
recommend the use of an inline filter on the air adapter to the
syringe when dispensing low viscosity fluids.
The display shows
the timer which can be adjusted for repeat deposits, down to
micro-dots. The display shows the RPM, the delay time from
dispensing as the table turns and delay time after.
This
compact dispenser sits on the bench and requires an air input from any
compressor or factory mains supply. It comes with airline hose and fittings
kit to make connection easy. Ready to use out of the box. CE approved with 1
Year warranty. |
|
|
|
|
|
|
|
|
Dispensers require
clean and dry compressed air from most small compressors, a mains
factory air supply or nitrogen. We recommend the use of a 5 micron air
filter on the supply air into the dispenser. This will reduce oil,
moisture and particles from the air.
No other maintenance is required as
the dispenser applies liquid direct from a syringe barrel without being
in direct contact with it. Syringe barrels and dispense tips are all
disposable.
Items
are shipped in the UK by a courier on a next day tracked and
insured service for all items that are available from stock. Items on a
lead time will be shipped as soon as they are available.
Dispensers will handle all viscosity liquids from thin solvents to thick
pastes. Customers use these systems for a wide range of dispense projects.
Common applications include solder paste, fluxes, silicones, gels, UV cure,
Cyanoacrylate & more.
Adhesive Dispensing Ltd provide a wide
range of equipment options for dispensing almost all assembly fluids - from
watery liquids, solvents, primers and activators through to thick pastes,
sealants, silicones, gels and epoxies. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
