> Home > Equipment > Guns > Dual Guns > DP400-85-01




400ml Pneumatic Dual Cartridge Gun for Epoxy Dispensing

Industrial air powered cartridge gun dispensers are designed for the controlled application of most two component epoxies, silicones and other materials. Use this high quality manual gun with 1:1 and 2:1 ratio 400ml dual component cartridges.
200ml 1:1 2:1 Ratio Pneumatic Dual Cartridge Gun


For epoxies, adhesives and other materials that are supplied in 400ml two part, side-by-side 1:1 and 2:1 ratio cartridges with the use of a static mixing nozzle.  The lightweight and durable construction of these dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive. Works with standard 400ml dual cartridges.

The cartridge is pushed into the pivoting gun retainer and clicked in place. Maximum thrust of 3.2kN. Maximum 100 psi air pressure. Instant dump valve for fast air release. Centralising rods included. Reverse air feature. Includes adjustable air regulator. CE certified product with 1 Year warranty. 85mm cylinder diameter.

Weight 2.18kg / 4.81lbs
Length: 402mm / 15.8in
Maximum Thrust: 3.2kN
Tool material: cast aluminium and reinforced nylon
Cartridge capacity: 400mL

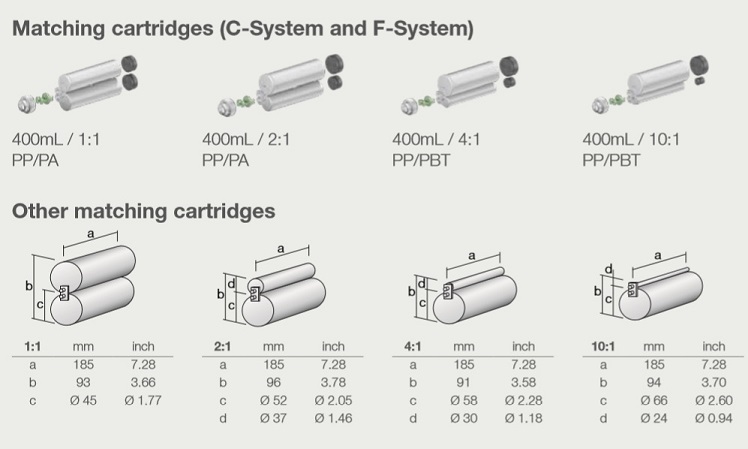

Cartridge ratio: 1:1, 2:1
Air inlet: G 1/4in
Max operating pressure: 6.8 bar

Sulzer Mixpac DP 400-85 pneumatic 2K cartridge gun

More Info Part No. Size Type Ratio Lead Time Price GBP Add
200ml 1:1 2:1 Ratio Pneumatic Dual Cartridge Gun DP400-85-01
Multi Ratio Dual Gun		 400ml Air Gun 1:1/2:1 Ships Within 24 Hours    each
More Info Part No. Size Type Ratio Lead Time Price GBP Add
200ml 1:1 Ratio Dual Cartridge System 400011
Dual Cartridges		 400ml Cartridge Piston Sets 1:1 Only Ships Within 24 Hours    pack 50
200ml 1:1 Ratio Dual Cartridge System 400021
Dual Cartridges		 400ml Cartridge Piston Sets 2:1 Only Ships Within 24 Hours    pack 50
Static Mixer Nozzle Adhesive Dispensing MC05-18
Static Mixer Nozzle		 5.0mm 121mm Long x 18 Elements 1:1/2:1 Ships Within 24 Hours    pack 100
Static Mixer Nozzle Adhesive Dispensing MC05-24
Static Mixer Nozzle		 5.0mm 149mm Long x 24 Elements 1:1/2:1 Ships Within 24 Hours    pack 100
Static Mixer Nozzle Adhesive Dispensing MC06-24
Static Mixer Nozzle		 6.0mm 185mm Long x 24 Elements 1:1/2:1 Ships Within 24 Hours    pack 100
Static Mixer Nozzle Adhesive Dispensing MC06-32
Static Mixer Nozzle		 6.0mm 234mm Long x 32 Elements 1:1/2:1 Ships Within 24 Hours    pack 100
Static Mixer Nozzle Adhesive Dispensing MC08-18
Static Mixer Nozzle		 8.0mm 177mm Long x 18 Elements 1:1/2:1 Ships Within 24 Hours    pack 100
Static Mixer Nozzle Adhesive Dispensing MC08-24
Static Mixer Nozzle		 8.0mm 223mm Long x 24 Elements 1:1/2:1 Ships Within 24 Hours    pack 100
Static Mixer Nozzle Adhesive Dispensing MC10-18
Static Mixer Nozzle		 10.0mm 214mm Long x 18 Elements 1:1/2:1 Ships Within 24 Hours    pack 100
