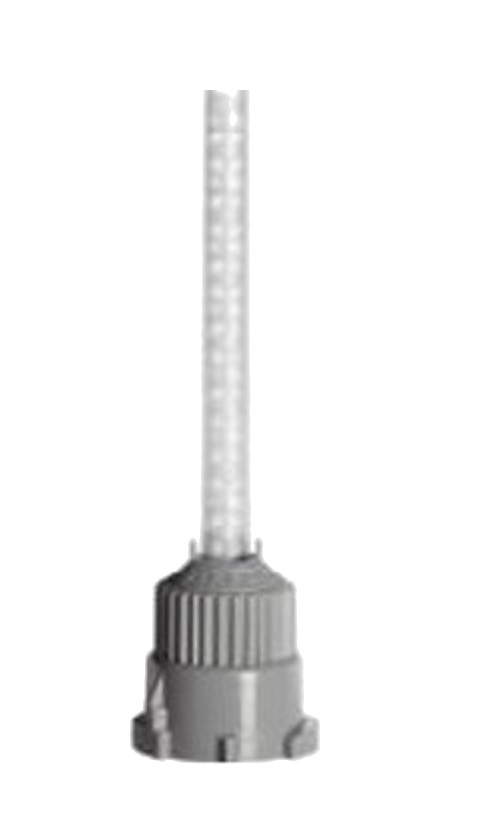

Static Mixer Nozzle 5.4mm ID x 12 Mix Elements |
|
|
|
High density moulded
static mixer nozzles with cap attachment to cartridges or machines.
Straight end design for direct dispensing and higher flow rate. Silicone free and
industrial grade. |
|
|
|
|
|
Twist
lock cap, helical static mixer nozzle for 50ml and 75ml B-System
1:1 and 2:1 ratio dual component cartridges. Straight end outlet
that for faster flow rates of materials.
They have white elements and
are constructed of high grade polypropylene. All items are
industrial grade safe and silicone free.
If a higher level of control for smaller deposits is required,
use the luer end or stepped nozzle versions. All products shipped are in sealed boxes or packs
that
include label with batch codes.
Adhesive Dispensing Ltd provide a wide range
of equipment options for dispensing almost all assembly fluids -
from watery liquids, solvents, primers and activators through to
thick pastes, sealants, silicones, gels and epoxies. |
|
|
|
|
|
|
|
|
Specifications |
Materials: Polypropylene
Colours:
Natural Out/ White Inner/ Grey Cap
Length: 82.5mm
Inner Diameter: 5.4mm
Number of Elements: 12
Retained Material Volume:
1.52ml
Connection Type: Twist Lock Cap
Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: Straight
Description: Static Mixer Nozzle
Features: Silicone-Free, Industrial Grade
Pack Size: 100 pcs
Commodity Code:
39235090 |
| |
|
|
|
|
|
|
Delivery: Products
shipped by courier on a tracked and
insured service for stock items. Products on a
longer
lead time or built to order will be sent as soon as available. Customers are informed of
ship dates.
Typical Applications:- Deposits of
epoxy resins, two-part silicones, PU Polyurethanes and many other 2
component mixed materials. Use dispensing tips for more precision. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
