Bench top dispensing system for the controlled application of
most watery liquids to thick pastes. Analog adjustable timer with adjustable air regulator and a
vacuum suck back to prevent drips. Make controlled beads and
repeat shots of
most liquids using electric foot pedal or electric finger switch -
both are supplied.

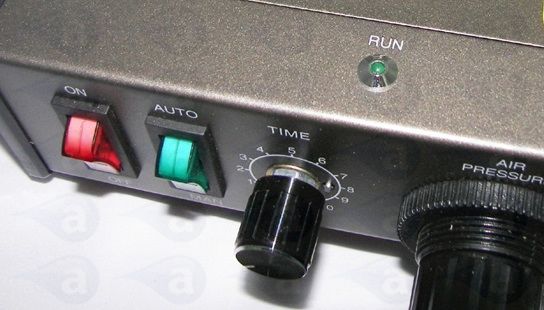

The TS9150 is a high quality
timed liquid dispenser. It will apply watery liquids to thick pastes by
simply adjusting the air pressure gauge - with repeat deposits using the
adjustable timer or controlled beads when the timer is switched off. An
adjustable vacuum suck-back prevents any watery liquids from dripping.
Its simplified design and operation makes it easy for anyone that has
never used a pneumatic dispenser before. The unit allows repeat deposits or
beads of RTVs, silicones, solder pastes, glues, UV cure, pastes, grease,
primers, adhesives, epoxies and much more. Sits neatly on any work bench.
Options for using barrel sizes from 3cc to 55cc.
Supplied complete
with starter kit of 30cc barrels with wiper pistons, tip caps, barrel end
caps, full tip kit, barrel adapter assembly hose, electric foot switch,
power cord, airline hose, syringe stand, instruction guide and manuals.
Covered by a two (2) year warranty and CE approved. This dispenser is
available direct from stock.
This robust built benchtop dispenser is
simple to use and operate and we offer full technical support for quick set
up and for getting results.
TS9150 Timed Dispenser
GBP each ex. Vat. Excludes carriage.
Product Code: TS9150
Lead Time: Ships Within 24 Hours
Summary: This air-powered syringe dispenser provides
the user with high levels of control when applying watery liquids to
thick pastes. It is built from high quality parts & covered by a 2-Year
warranty. It is dual voltage so can be used globally. We ship this with
accessories ready to use out of the box. It is CE approved & includes a
full user guide.
Product Code
Qty
Price
GBP
Add
TS9150
1
each
Part ID:
TS9150
Type:
Electro-pneumatic
Dispenser Initiate:
Electric footswitch & electric finger switch
Pressure Display:
Analog gauge 0-100 psi
Timer Display:
None
(manually adjustable knob)
Vacuum Display:
None (manually adjustable knob)
Dispense
Timer:
0.01 - 31
second adjustable
Dispense Modes:
Timer or steady mode (continuous)
Output Pressure:
Up to 100 psi
Input Pressure:
80-100 psi
Size:
241 x
210 x
70 mm
Weight:
2.1 kg
Input Voltage:
110V AC - 220V AC
Warranty:
2 Years
Cycle Rate:
Up to 600 cycles/minute
Timing Tolerances:
+/- 0.1%
Meets or Exceeds:
CE Approved
Items
are shipped in the UK by a courier on a next day tracked and
insured service for all items that are available from stock. Items on a
lead time will be shipped as soon as they are available.
Dispensers will handle all viscosity liquids from thin solvents to thick
pastes. Customers use these systems for a wide range of dispense projects.
Common applications include solder paste, fluxes, silicones, gels, UV cure,
Cyanoacrylate & more.
Dispensers require
clean and dry compressed air from most small compressors, a mains
factory air supply or nitrogen. We recommend the use of a 5 micron air
filter on the supply air into the dispenser. This will reduce oil,
moisture and particles from the air.
No other maintenance is required as
the dispenser applies liquid direct from a syringe barrel without being
in direct contact with it. Syringe barrels and dispense tips are all
disposable.
