Home > Components > Tips > DCK500




Needle Tip Kit in Presentation Case
Ref. DCK500

Our precision components provide safe and leak free fluid dispensing from syringe barrels, valves and cartridges. Precision tips are suitable for use with most adhesives, solvents, pastes, gels, silicones and other assembly fluids. This kit is in a presentation case and comes with a selection of dispensing tips.

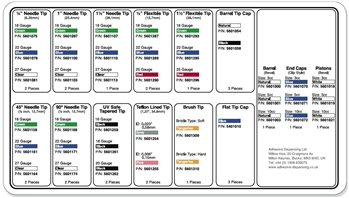

DCK500 Tip Kit Assortment in Case Adhesive Dispensing


Use DCK500 selection of 144 assorted dispensing barrels, pistons caps and tips in this kit include the blunt end, the blunt end angled general purpose dispensing tips, brush tips along with the TTNE taper tips and tip caps. Includes selection of Teflon Lined tips, 45 and 90 degree bend tips. Each tray receptacle comes with five samples of each product.

Dual level plastic box with printed card for easy product identification. All tips feature double helix locking thread for safety and are safe to use to 100 psi. Hubs are colour filtered plastic for UV protection. All components are silicone and chloride free.

All products shipped are in sealed boxes or packs that include label with batch codes.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

DCK500 Tip Kit

Excludes Carriage.
Lead Time: Ships Within 24 Hours

Item Qty Price GBP Add
DCK500 1   pack

Specifications

    Precision Burr Free Tubing
   0.5", Bent, Polypro, Teflon, Brush, Tapered Tips
   Silicone Free Safe Plastics
  Safe for use up to 100 psi
   Double helix luer lock colour coded hubs
   Protective Case
   For all fluids, adhesives and solvents


tip kit   tip kit
Gauge Length Colour Qty Description Part Code
18 0.25" Green 2 Precision tip straight shaft TE718025PK
22 0.25" Blue 2 Precision tip straight shaft TE722025PK
27 0.25" Clear 2 Precision tip straight shaft TE722025PK

14 0.50" Olive 5 Precision tip straight shaft TE714050PK
15 0.50" Amber 5 Precision tip straight shaft TE715050PK
16 0.50" Black/ Grey 5 Precision tip straight shaft TE716050PK
18 0.50" Green 5 Precision tip straight shaft TE718050PK
20 0.50" Pink 5 Precision tip straight shaft TE720050PK
21 0.50" Purple 5 Precision tip straight shaft TE721050PK
22 0.50" Blue 5 Precision tip straight shaft TE722050PK
23 0.50" Orange 5 Precision tip straight shaft TE723050PK
25 0.50" Red 5 Precision tip straight shaft TE725050PK
27 0.50" Clear 5 Precision tip straight shaft TE727050PK
30 0.50" Lavender 5 Precision tip straight shaft TE730050PK

18 1.00" Green 2 Precision tip straight shaft TE718100PK
22 1.00" Blue 2 Precision tip straight shaft TE722100PK
27 1.00" Clear 2 Precision tip straight shaft TE727100PK

18 1.50" Green 2 Precision tip straight shaft TE718150PK
22 1.50" Blue 2 Precision tip straight shaft TE722150PK
27 1.50" Clear 2 Precision tip straight shaft TE727150PK

18 0.50" Green 2 Flexible tip polypro shaft 3118PPS-B
22 0.50" Blue 2 Flexible tip polypro shaft 3122PPS-B
25 0.50" Red 2 Flexible tip polypro shaft 3125PPS-B

18 1.50" Green 2 Flexible tip polypro shaft 3118PP-B
22 1.50" Blue 2 Flexible tip polypro shaft 3122PP-B
25 1.50" Red 2 Flexible tip polypro shaft 3125PP-B

18 0.50" Green 2 Precision tip 45 degree bend TE718050B45PK
22 0.50" Blue 2 Precision tip 45 degree bend TE722050B45PK
25 0.50" Red 2 Precision tip 45 degree bend TE725050B45PK

18 0.50" Green 2 Precision tip 90 degree bend TE718050B90PK
22 0.50" Blue 2 Precision tip 90 degree bend TE722050B90PK
25 0.50" Red 2 Precision tip 90 degree bend TE725050B90PK

21 1.00" Grey 2 Teflon Lined Crimped Tip 5121TLC-B
25 1.00" Pink 2 Teflon Lined Crimped Tip 5125TLC-B

15 0.50" Amber 1 Brush Tip Soft Bristle 5601309
15 0.50" Amber 1 Brush Tip Hard Bristle 5601310

14 1.25" Olive 5 Smooth flow tapered tip 5601269
16 1.25" Grey 5 Smooth flow tapered tip 5601270
18 1.25" Green 5 Smooth flow tapered tip 5601271
20 1.25" Pink 5 Smooth flow tapered tip 5601272
22 1.25" Blue 5 Smooth flow tapered tip 5601273
25 1.25" Red 5 Smooth flow tapered tip 5601274

3cc Barrel Clear 1 Natural barrel luer lock 7030LL1NPK
5cc Barrel Clear 1 Natural barrel luer lock 7050LL1NPK
10cc Barrel Clear 1 Natural barrel luer lock 7100LL1NPK

3cc Piston White 1 White PE wiper piston 7030009WPK
5cc Piston White 1 White PE wiper piston 7050009WPK
10cc Piston White 1 White PE wiper piston 7100009WPK

3cc End Cap Orange 1 Snap-on end cap seal AD903-ECO
5cc End Cap Orange 1 Snap-on end cap seal AD905-ECO
10cc End Cap Orange 1 Snap-on end cap seal AD910-ECO

n/a n/a Orange 3 Tip cap seal 7015LLPK
n/a n/a Black 3 Tip cap seal 7015LLBPK
n/a n/a Blue 3 Tip cap seal AD900-BTC

Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates. The items listed on this page are held in stock.

Typical Applications:- Barrels are designed for use with pneumatic dispensing equipment. They are thick walled with threaded connection and designed for high pressure. The internal bore is zero draft meaning there is no taper. This ensures the wiper piston inside moves freely down without restriction to improve performance. Use with pastes, adhesives, solvents, epoxies, RTVs, silicones, PVAs, inks & gels. This range have luer lock ends for twist on tip attachment.


Dispensing Tips




Accessories
More Info Part No.

Specs

 Types Lead Time

Pack

 Price GBP Add
TN00DKIT
Boxed Tip Kit in Hard Case		 145 Assorted Tips Precision Tips 0.5"
Tapered Tips
Angled Tips		 24 Hours 1   each
DCK600
Boxed Tip Kit in Hard Case		 145 Assorted Tips Precision Tips 0.5"
Tapered Tips
Angled Tips		 24 Hours 1   each
DCK700
Boxed Tip Kit in Hard Case		 145 Assorted Tips Precision Tips 0.5"
Tapered Tips
Teflon Lined Tips		 24 Hours 1   each
